FìLI 5.0 C

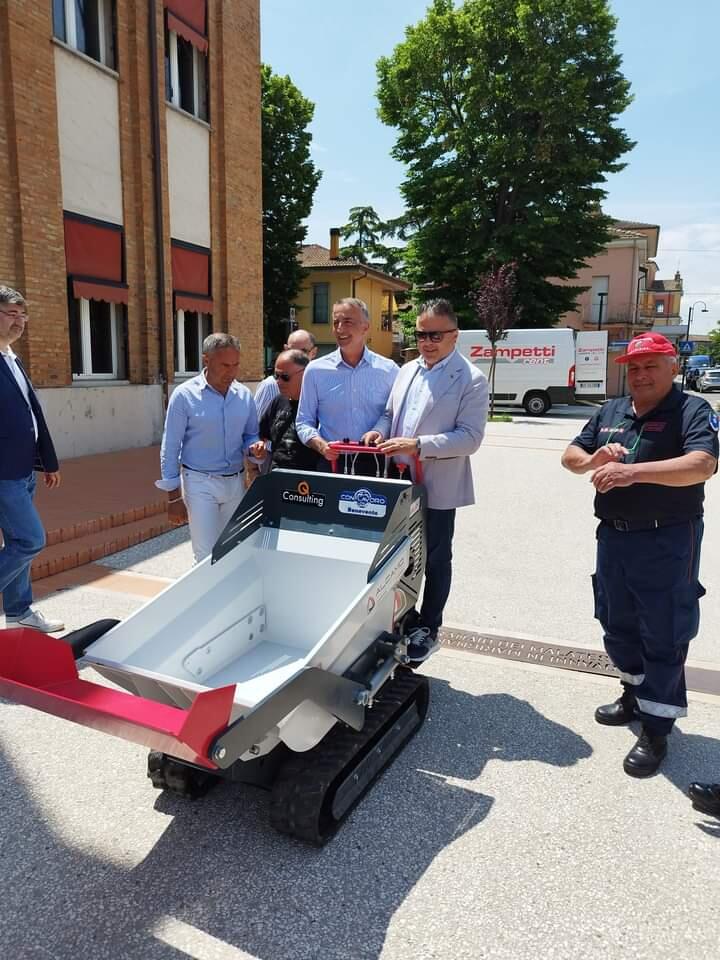

Alcamo presents FìLI 5.0 , and a minidumper with hydrostatic transmission, compact with self-loading shovel, mounts a Honda Gx200 engine with electric start, max capacity 500 kg on flat ground.

FìLI 5.0 E is a mini dumper with shovel ideal for construction and agriculture, the machine and capable of loading and transporting materials of various kinds in very narrow places, where large machines are often unable to operate due to the overall dimensions and heavy weights.

The main features of the mini dumper with self-loading shovel :

1. Reinforced type orbital hydraulic motor, with axial load of about 1000 kg, bearings and reinforced oil seal rings, flange with 4 holes and 32mm diameter shaft, 200 cubic cm displacement;
2. Double gear hydraulic pump;
3. Internal and external side protections of the frame support rollers, protects the rollers from the intrusion of stones or materials inside the track channel;
4. Comfortable grip control handle;
5. Tension recovery springs mounted on the track tensioning system, prevents tearing and damage to the track and transmission components in the event of stones or foreign material entering the track;
6. Standard operator platform;
7. Dumper body and load pallet reinforced for heavy work, equipped with double hydraulic cylinder;
8. Double parallel distributor.
9. Low center of gravity, this feature makes the mini dumper very stable.
